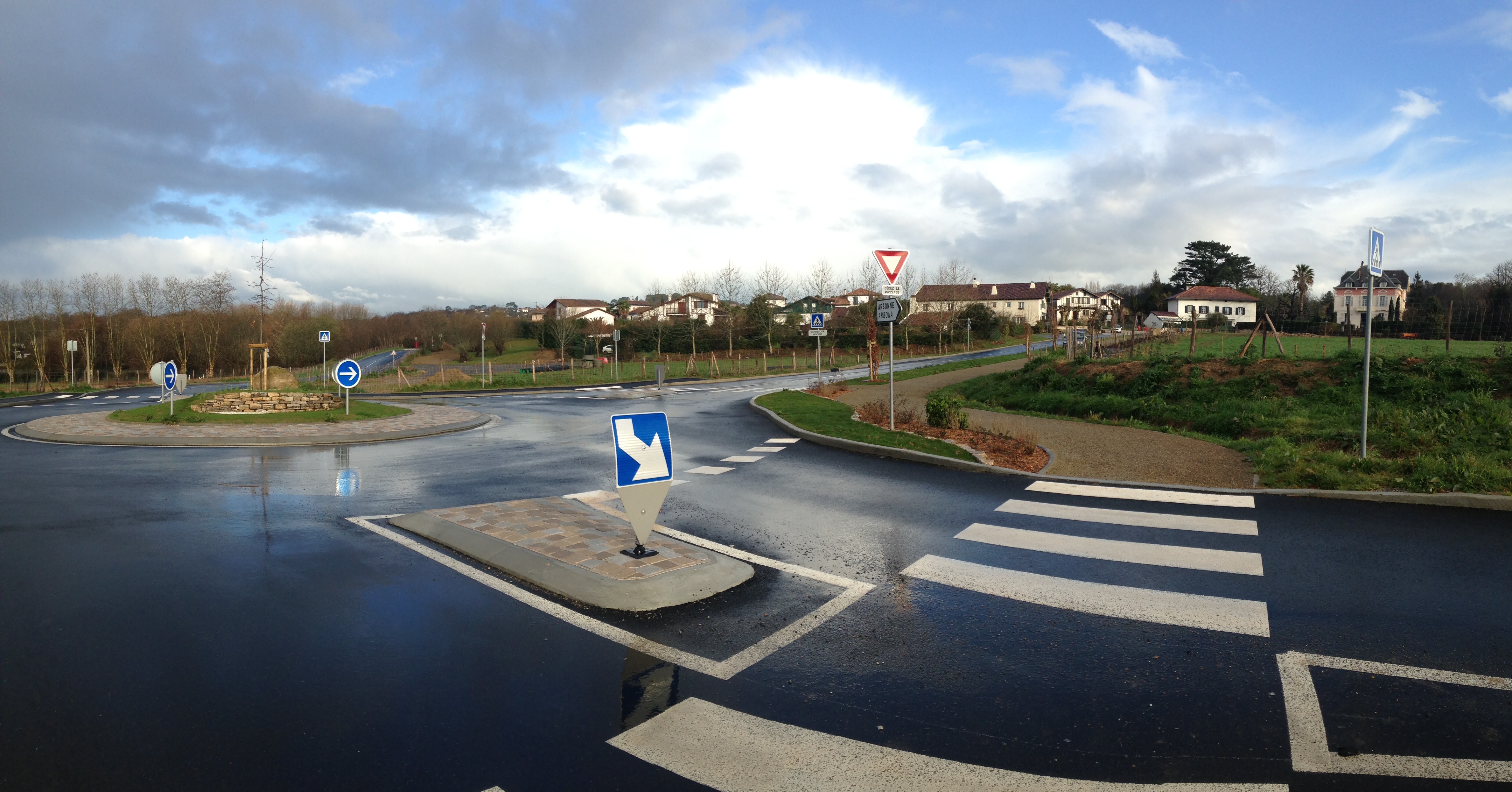

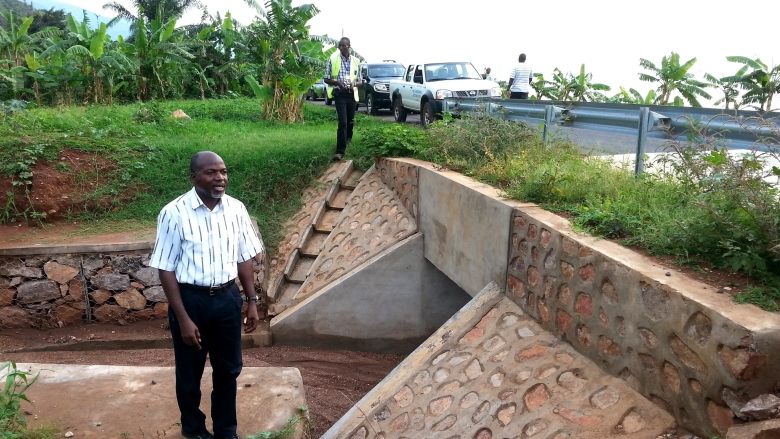

A turnkey project design by MAK Engineers and supervised by the Engineers of the Nevis Government, construction of a network of 10 roads connecting various villages – total length of the roadwork is 5.6 km, dual carriageway (6 m wide), removal of existing concrete track road (3 m wide) and clearance of vegetation for 6 m wide new road, removal of top soil and placement of good quality fill material to required sub-grade level, laying of utility lines, manholes and valve chambers; Construction of concrete curbs, concrete slipper drains, box culverts and swales for transverse drainage, box drains, 1 m wide footpaths on both sides of the road, retaining walls and guard rails embedded in bollards and protection works; 200 mm thick crusher run base course, compacted sub-grade and 75 mm thick asphalt wearing course, traffic signs, road markings and embankment slopes are to be landscaped.
Major Quantities:
Excavation: 23,000 m3, Fill: 19,000 m3, Road Base: 8,000 m3, Asphalt: 26,000 m2, concrete drains: 6,500 m, Box culverts: 120 m, Utility services: 3,500 m of waterlines and relocate 60 electric poles.
Value
$6,300,000Client
Ministry of Physical Planning, Infrastructural Development, Natural Resources & Environment, Nevis Island AdministrationConsultant
Ministry of Physical Planning, Infrastructural Development, Natural Resources & Environment, Nevis Island AdministrationLocation
NevisCompletion Date
Sept 2009
